Honed Tube

Honing pipe generally refers to hydraulic steel pipe. Hydraulic steel pipe is basically divided into fluid pipe and oil steel tube pipe used in hydraulic system, also known as honing pipe.

+8618654573180

sales01@tsingtuosteel.com

◉ Product Details

Product Type: Carbon Seamless Honed Steel Tube,Cold Drawn Carbon Steel Seamless Honed Tube,Honed Tube Carbon Seamless Saw Steel Pipe Tube

Material: ST52,CK45,4140,SCM440,16Mn,42CrMo,E355,Stainless Steel 304/316,Duplex 2205,etc.

Delivery Condition: BK, BK+S, GBK, NBK

ID Size : 20mm – 1500mm

Length: max 16m

Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn

Straightness: ≤ 0.5/1000

Roughness: 0.2-0.4 u

Tolerance EXT: DIN2391, EN10305, GB/T 1619

Tolerance INT: H7,H8,H9

Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.

Packing: Bundle with steel strip and PE sheet or wooden case

Chemical Composition:
Steel grade	Chemical composition,%
	C	Si	Mn	P	S	Cr
				P	S	Cr	≤
				20#		0.17-0.24		0.17-0.37	0.35-0.65
16Mn	≤0.2	≤0.5	1.00-1.60	0.03	0/03	0.25
ST52(E355)	≤0.22	≤0.55	≤1.6	0.025	0.025	0.25
SAE1026(25Mn)	0.22-0.28	0.15-0.35	0.6-0.9	0.04	0.05	/
45#	0.42-0.5	0.17-0.37	0.5-0.8	0.025	0.02	0.25
Mechanical Property:
Delivery	cold finished(hard)(BK)			Cold drawn and stress-relieved(BK+S)
condition	cold finished(hard)(BK)			Cold drawn and stress-relieved(BK+S)
Steel grade	Rm MPa		Elongation	Rm MPa	ReH MPa	Elonggation
Steel grade	Rm MPa		A5(%)	Rm MPa	ReH MPa	A5(%)
20#	≥550		≥8	≥520	≥375	≥15
16Mn	≥640		≥5	≥600	≥520	≥14
ST52(E355)	≥640		≥5	≥600	≥520	≥14
SAE1026	≥640		≥5	≥600	≥510	≥12
45#	≥650		≥5	≥600	≥510	≥12

Standard Size:
I.D(mm)	O.D(mm)	WT(mm)	I.D(mm)	O.D(mm)	WT(mm)	I.D(mm)	O.D(mm)	WT(mm)
40	50	5	90	100	5	140	156	8
40	52	6	90	105	7.5	140	160	10
40	55	7.5	90	110	10	140	165	12.5
40	58	9	90	114	12	140	168	14
50	60	5	95	105	5	140	170	10
50	65	7.5	95	110	7.5	140	180	20
50	70	10	100	110	5	150	170	10
60	70	5	100	115	7.5	150	175	12.5
60	72	6	100	120	10	150	180	15
60	75	7.5	100	125	12.5	160	180	10
60	80	10	100	127	13.5	160	185	12.5
63	73	5	100	130	15	160	190	10
63	75	6	110	125	7.5	160	200	20
63	76	6.5	110	130	10	170	190	10
63	78	7.5	110	140	15	170	195	12.5
63	80	8.5	115	130	7.5	170	200	15
63	83	10	115	135	10	180	200	10
70	80	5	120	135	7.5	180	205	12.5
70	82	6	120	140	10	180	210	15
70	85	7.5	120	145	12.5	180	220	20
70	90	10	120	150	15	200	220	10
75	85	5	125	140	7.5	200	225	12.5
75	90	7.5	125	145	12.5	200	230	15
75	95	10	125	150	12.5	200	235	17.5
80	90	5	125	152	13.5	200	245	22.5
80	92	6	125	155	15	220	250	15
80	95	7.5	125	160	17.5	220	270	25
80	100	10	130	145	7.5	220	273	26.5
80	102	11	130	150	10	240	270	15
80	105	12.5	130	160	15	250	290	20
80	110	15	135	160	12.5	250	299	24.5
Special requirement						230.5	254	11.75

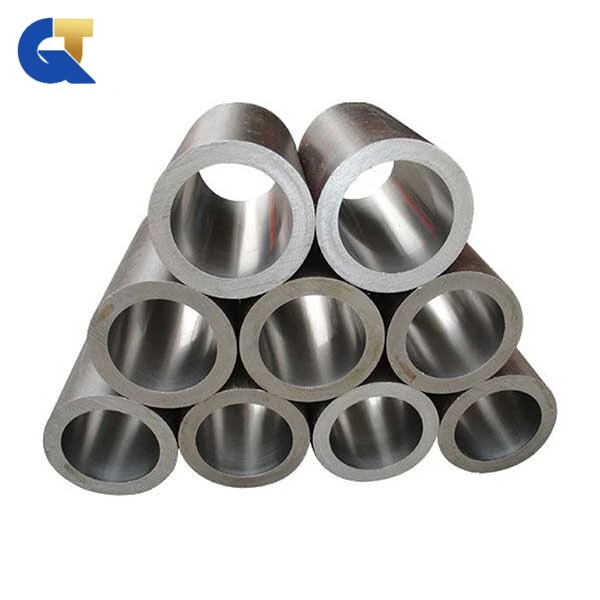

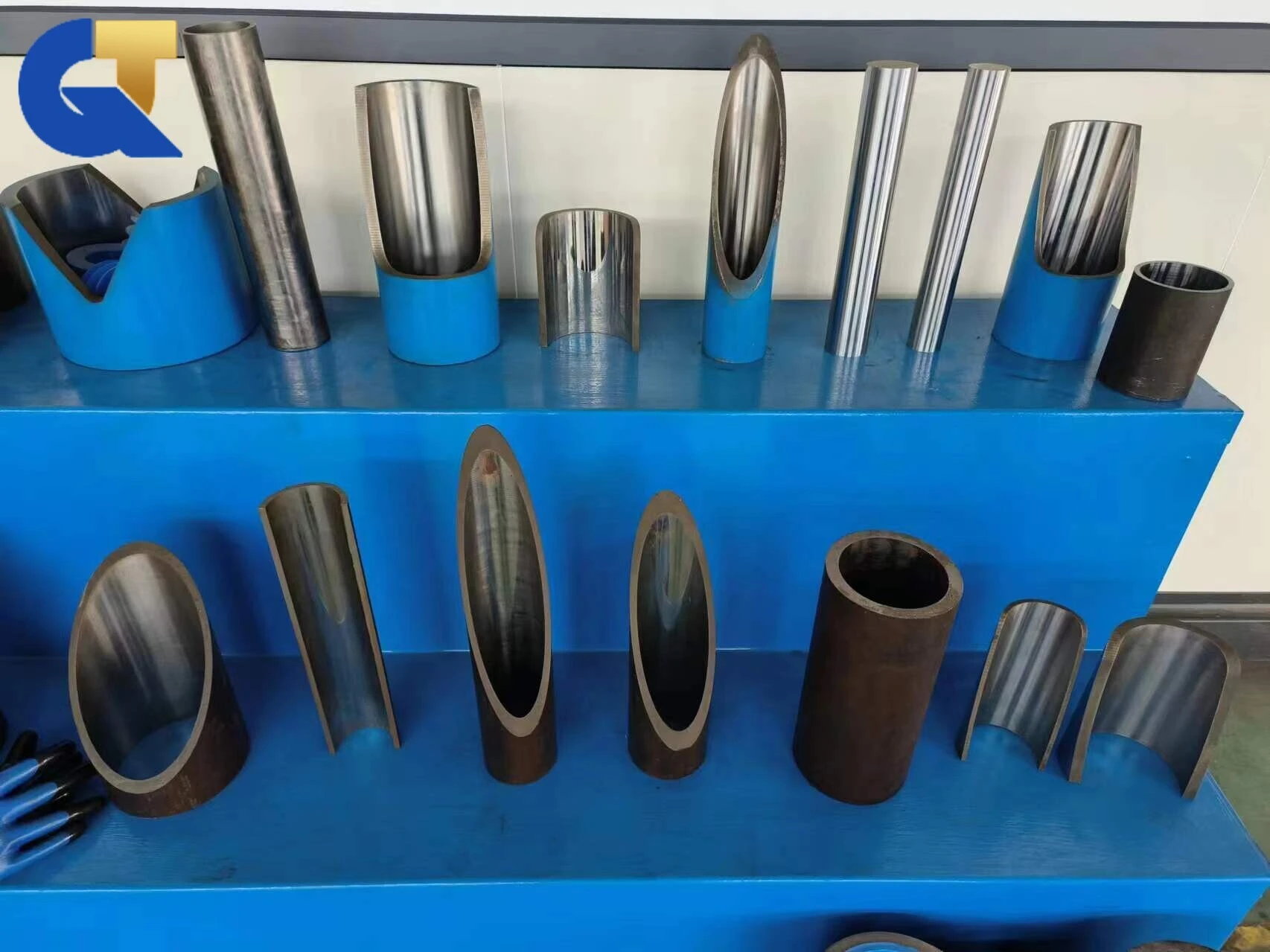

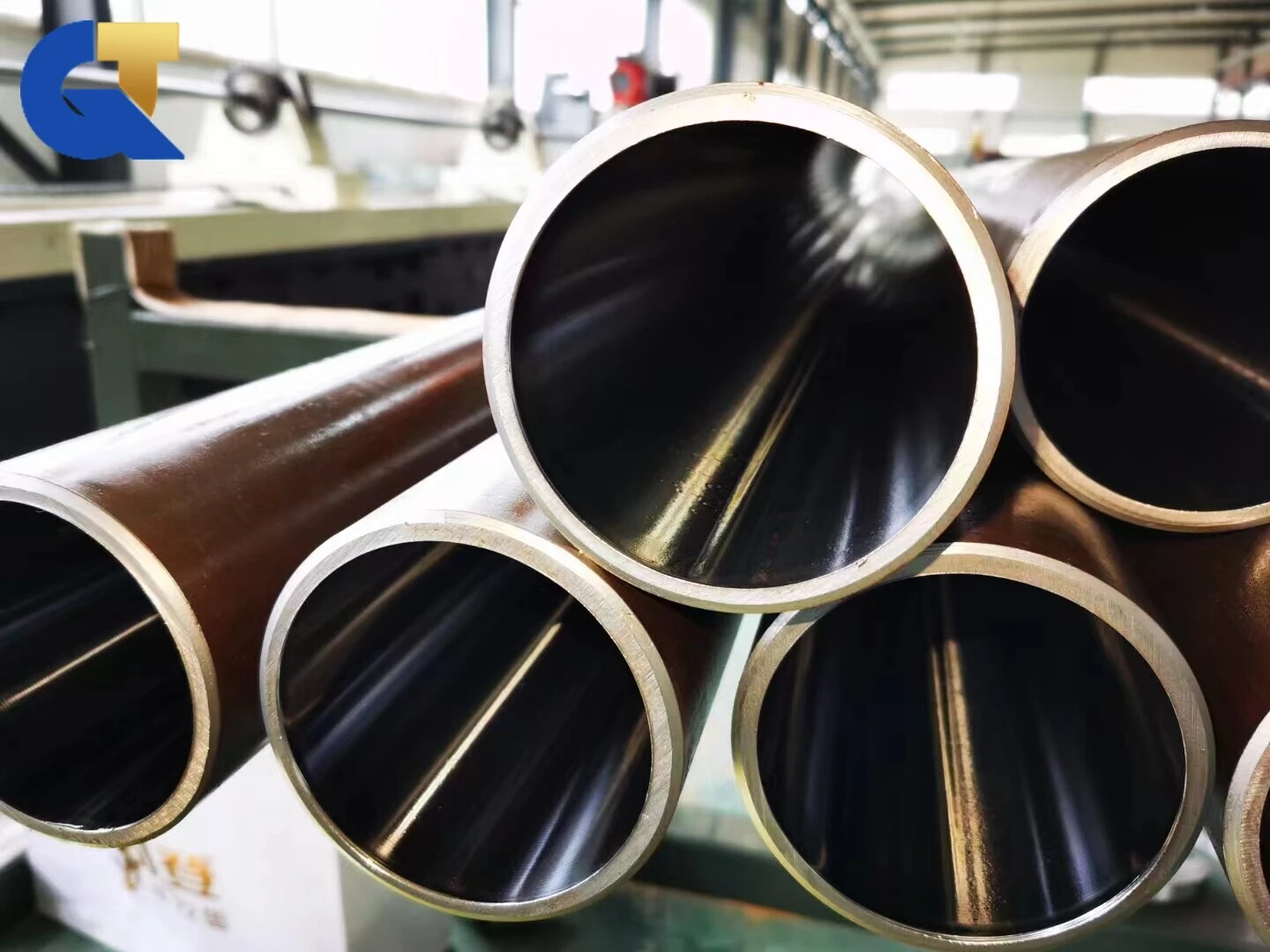

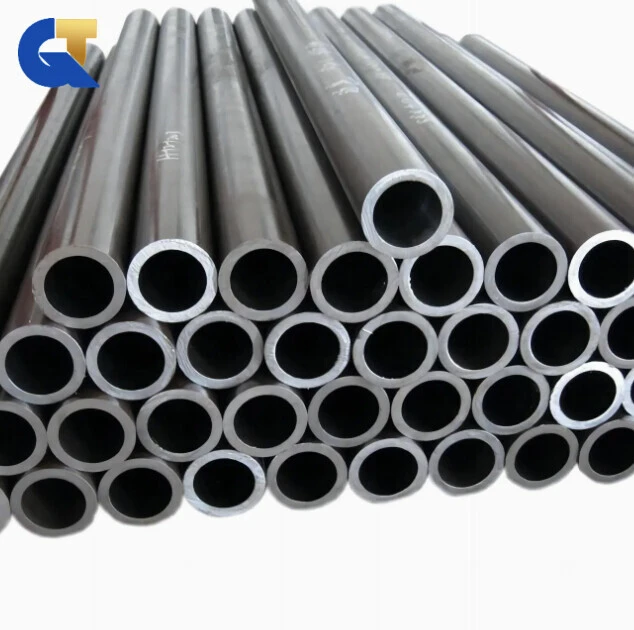

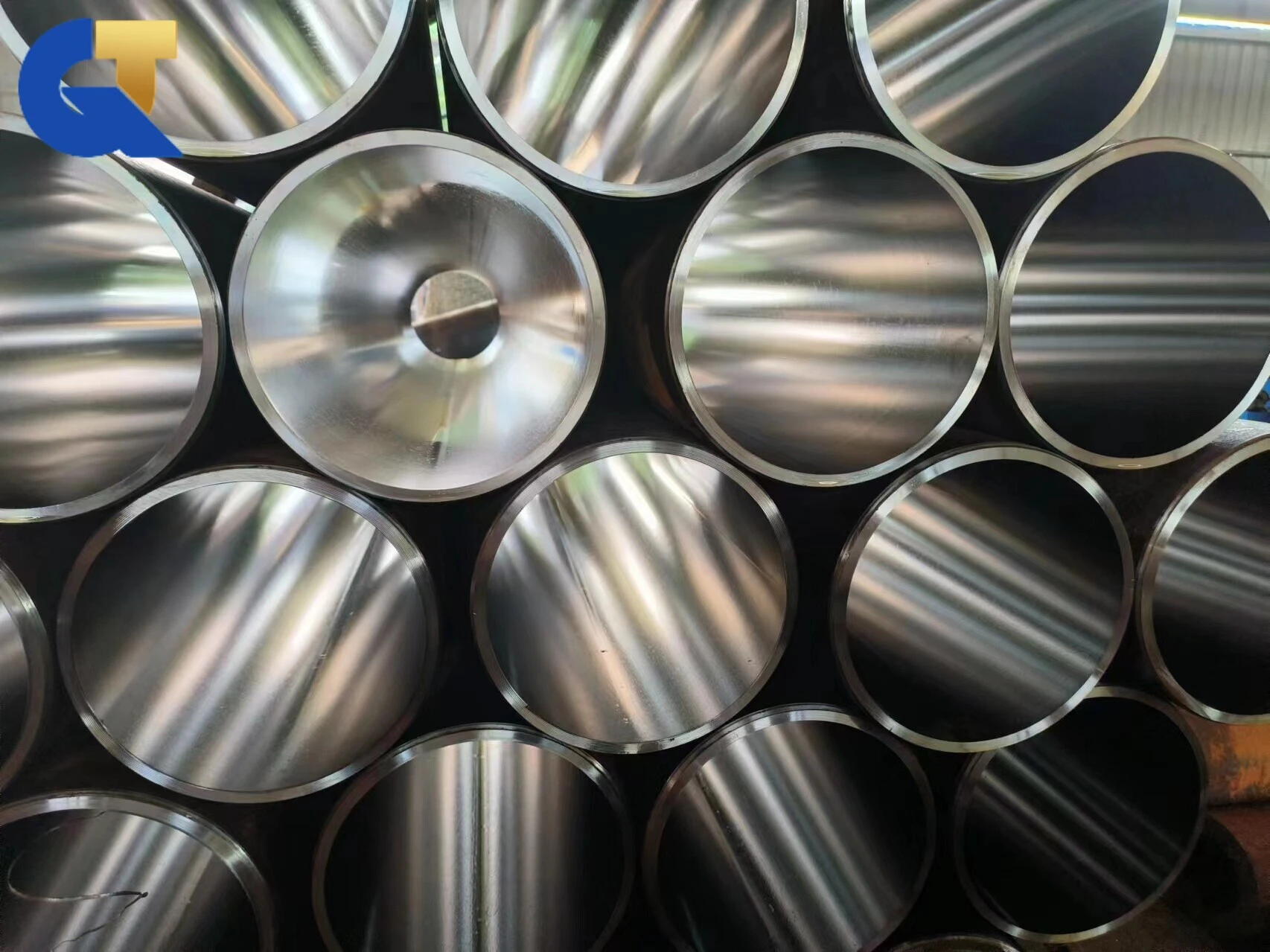

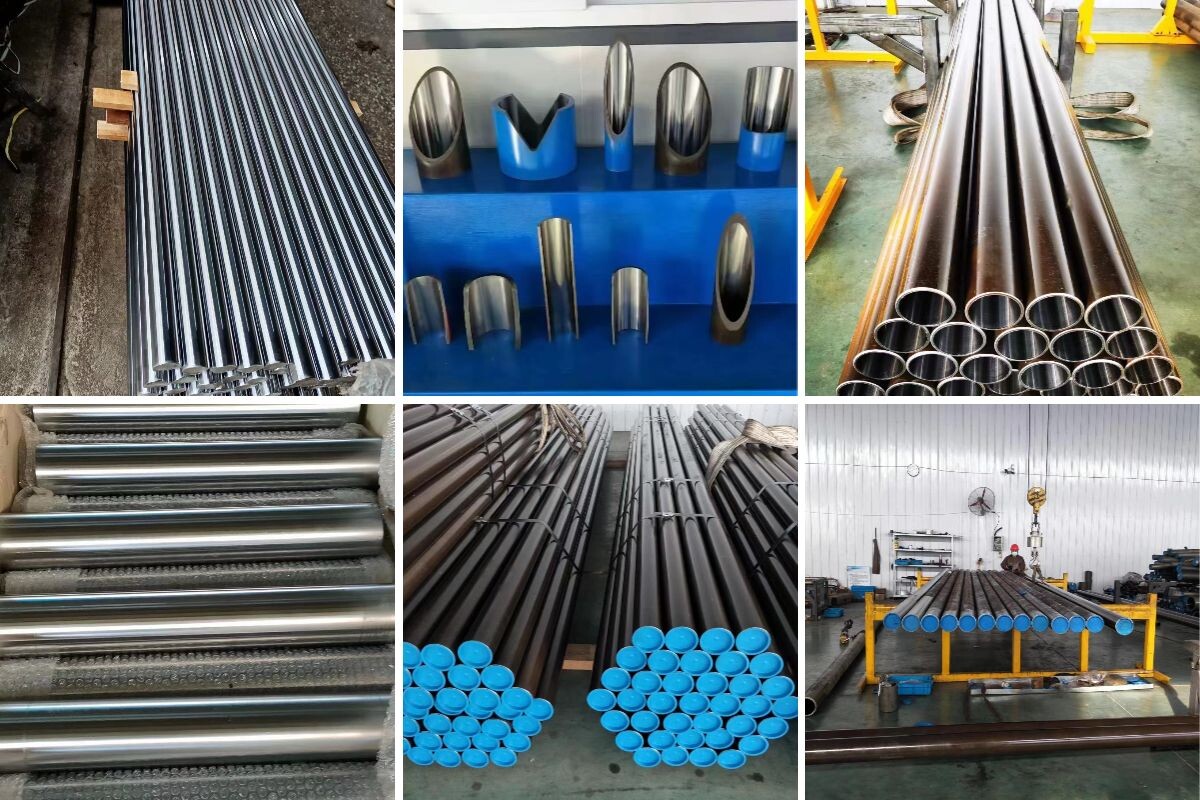

◉ Product Show

◉ Product Application

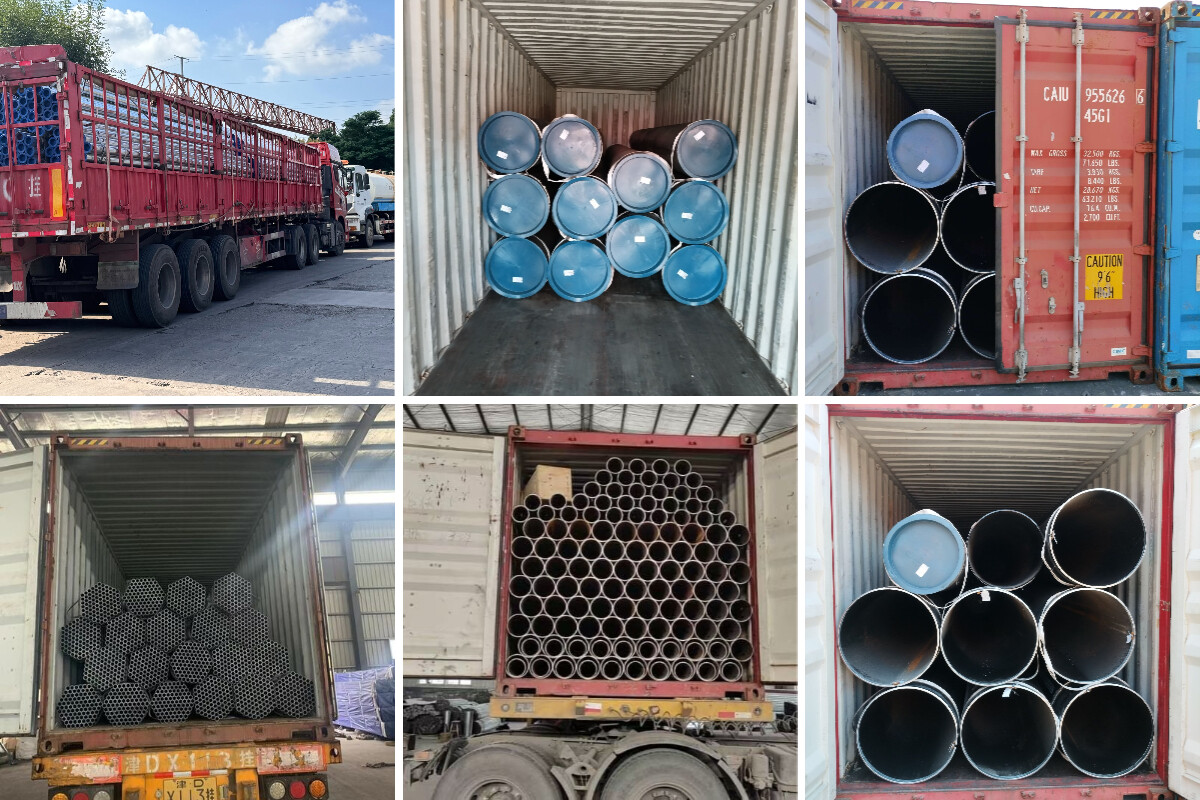

◉ Packing And Shipping

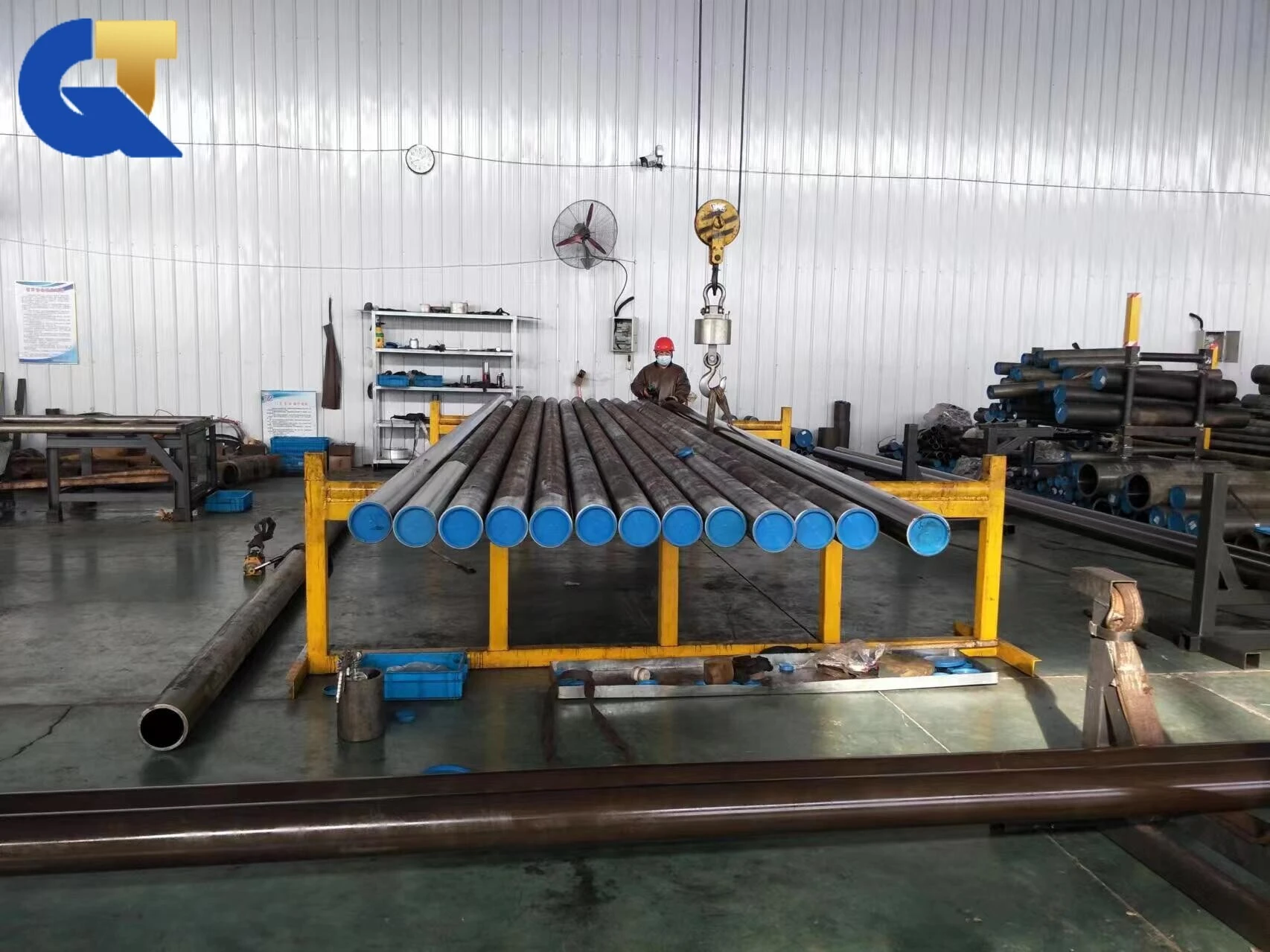

◉ Factory Show

◉ FAQ



Q1: What is the minimum order quantity (MOQ)? Do you support sample ordering?

A: We provide flexible procurement solutions:
Regular orders: MOQ 5 tons (special materials such as high-strength alloy steel MOQ 3 tons)
Sample ordering: Free samples of ≤1 meter (limited to 2 materials), support freight to be paid;
Zero-cut service: Inventory spot supports retail cutting by meter/kilogram to meet R&D and testing needs.



Q2: What are the payment methods? What currencies are accepted for settlement?

A: We provide diversified financial solutions:
Standard payment: T/T (30% prepayment), LC
Cross-border settlement: Accept USD, EUR, CNH, and the exchange rate is locked according to the Bank of China's daily exchange rate



Q3: How to deal with damage to goods during transportation? Is it insured?

A: We implement full-process risk protection:
Purchase "Ping An Cargo Transportation Insurance" by default, with the insured amount covering 110% of the value of the goods
Take an unboxing video within 48 hours after arrival and apply for quick claims
Provide "hosted warehousing" service, and waive 30-day storage fees for delayed delivery



Q4: Can long-term cooperation get better prices?

A: We have launched a "ladder rebate plan":
Annual purchase amount reaches 300 tons: rebate 2% + free warehousing for 1 month;
Reach 1,000 tons: rebate 5% + exclusive steel mill direct sales price (8-12% lower than the market price);
Support price hedging: Signing an annual framework agreement can lock the floating range



Q5: How long is the delivery cycle?

A: Conventional products: shipped within 7 days
Customized products: 15-30 days
Express service: Paying 10% of the fee can shorten the time by 1/3



Q6: How to ensure quality? Is a test report provided?

A: According to customer requirements, each batch of goods can be accompanied by SGS/BV stamped reports. Support factory inspection
